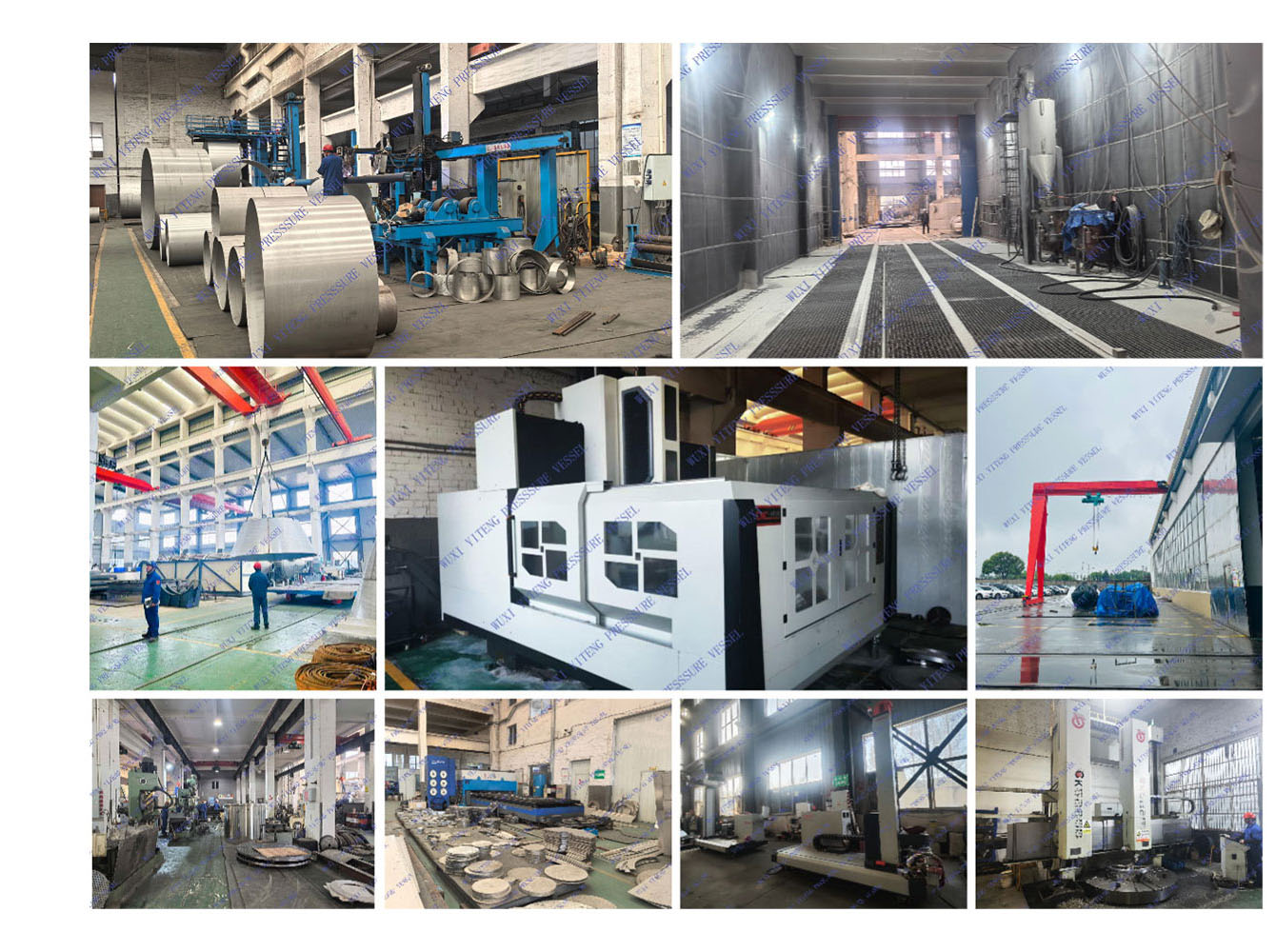

2. Fabrication Capabilities

• Annual turnover 600 sets total have 6000t.

• Max dimension: ID 5.3m, Length 80m, Weight 150t

• Max lifting capacity: 50t per single crane, Total 100t

• Max cutting thickness of plasma cutting machine: 50mm (Stainless steel)

• Max rolling thickness: Cold rolling 50mm(Stainless steel)

• Our product can fulfill the requirements of GB/ASME/PED/CE/TRCU/DOSH code.

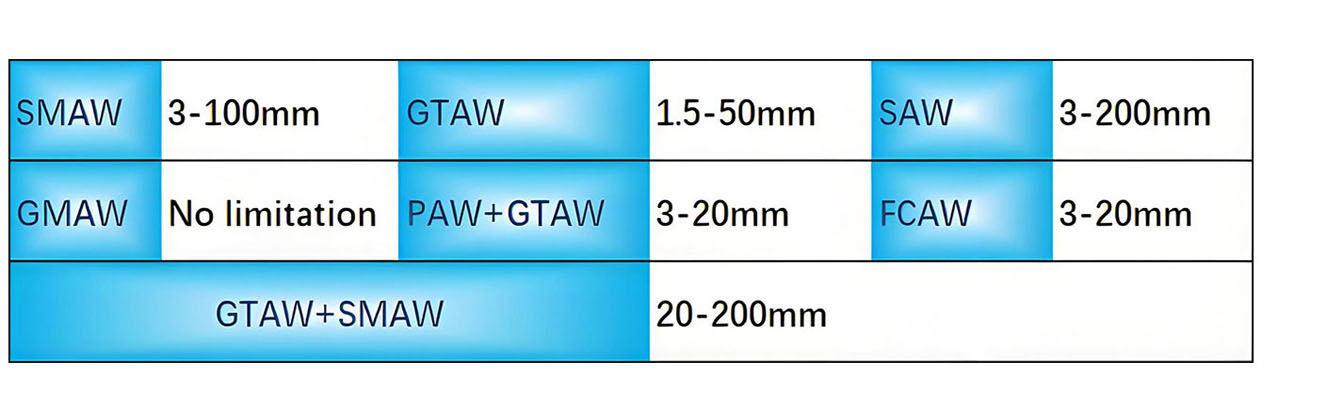

• Welding range (mm):

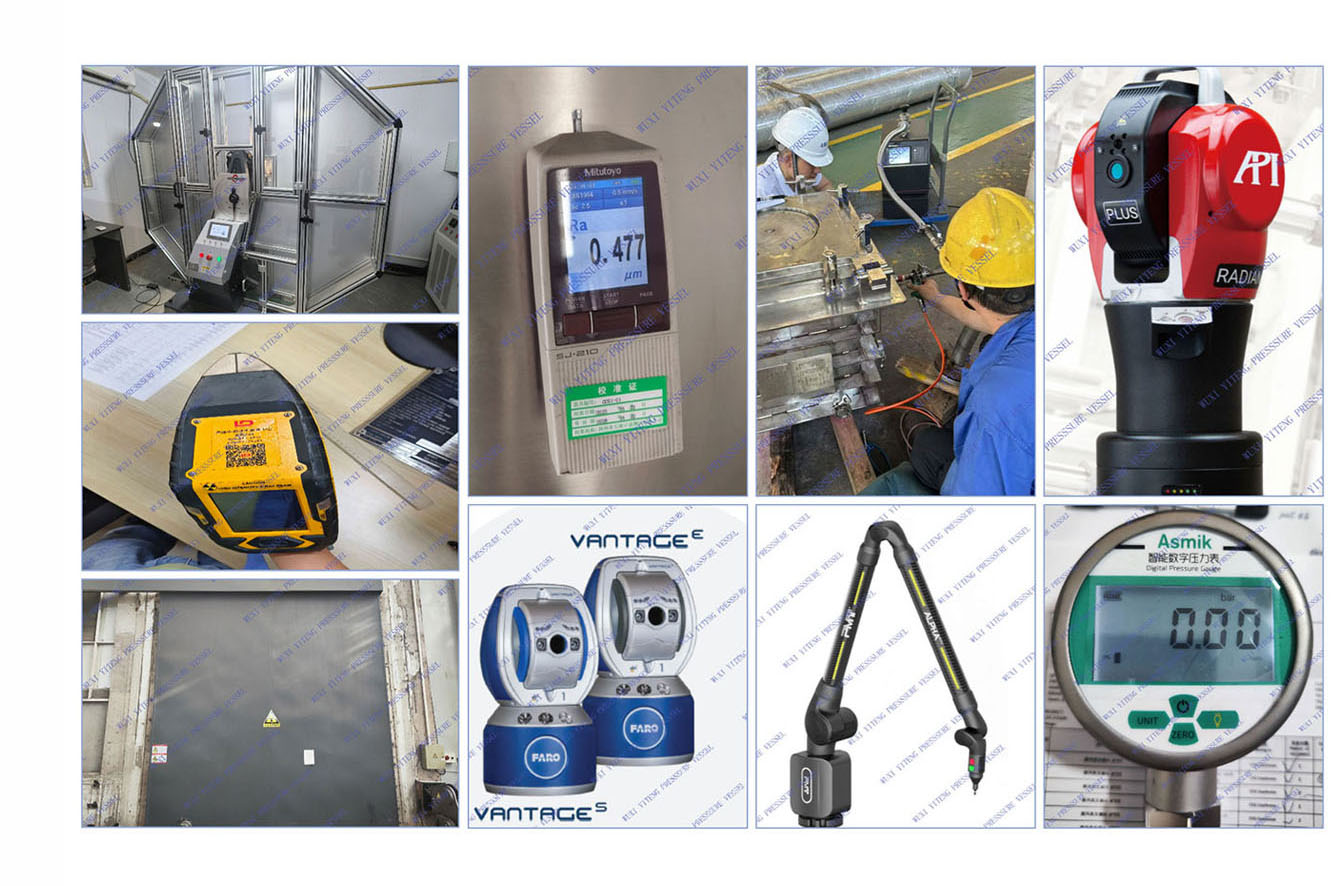

3. Inspection

• QC inspectors with rich experience

• Radiographic testing room 

• Physicochemical Laboratory 

• Helium leak detector from Japan

• Fischer Ferrite detector FMP30 from Germany

• Niton XL2 -X-ray PMI spectrometer from USA 

• Roughness test machine from Japan

• CMM measurement and laser tracker by outsourcing

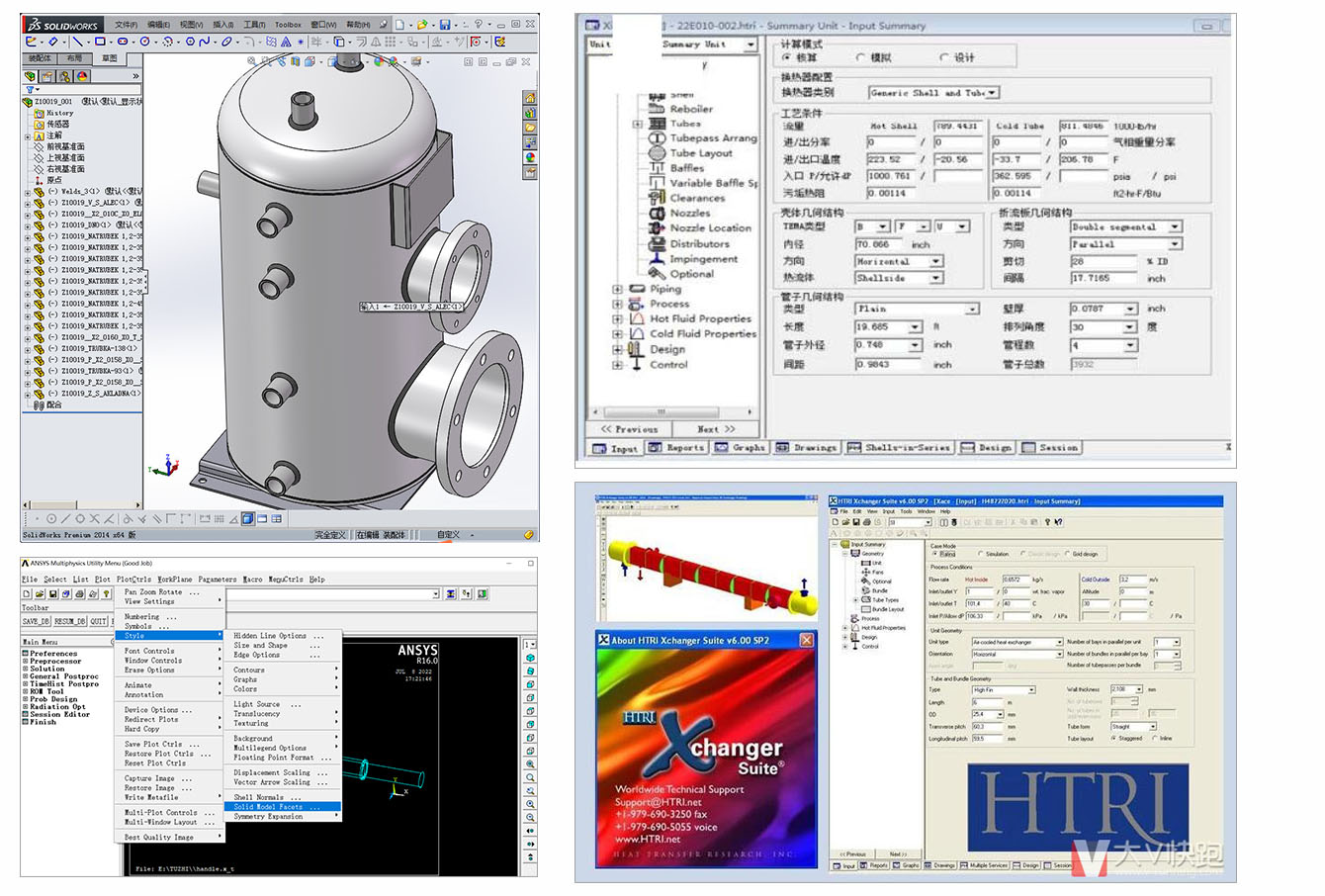

4. Design

• Design as per code ASME VIII-I/EN13445/TEMA/GB150/GB151 

• Use HTRI program for thermal calculation 

• Use SW6/PVE-Lite for mechanical calculation

• Use SolidWorks/ANSYS etc. for modeling and simulation

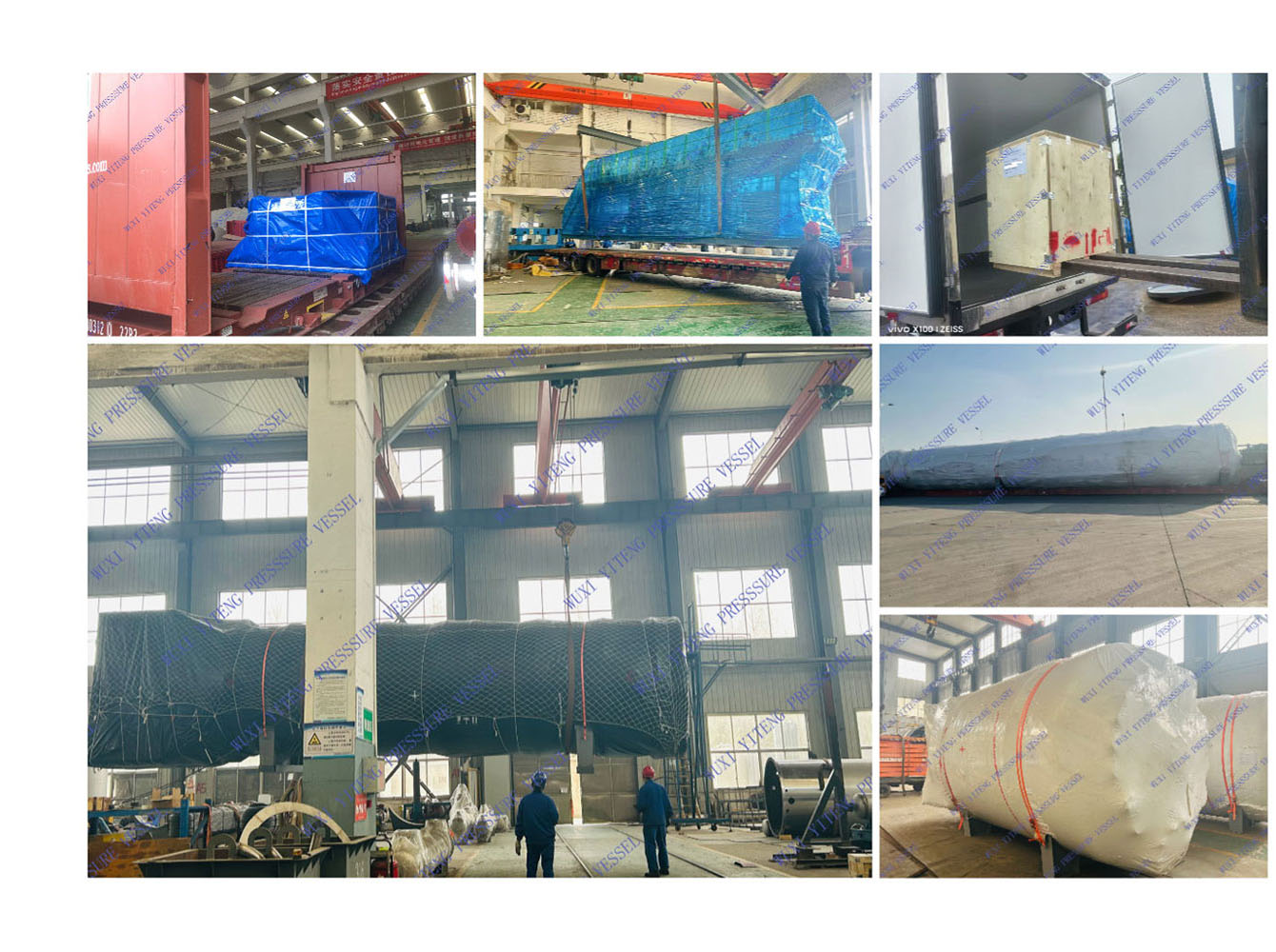

5. Package & Delivery

We can provide package and delivery as per client’s requirement, includes but not limited as below:

• Fumigated wooden box/non-wooden crate/pallet etc.

• Thermal plastic film/LDPE foil/tarpaulin etc.

• EXW/FCA/FOB/CIF…
